3D Diffusers 50
Diffuser / Bass trap absorber
The unique combination of diffusion effect and bass absorption in 3D Diffuser 50 provides an advanced and simple solution for optimizing acoustics of small and medium-sized rooms.
Diffusion is essential to ensure that the room's sound is open and vibrant while allowing you to control the sound with high precision. Bass absorption is essential for controlling resonances in the room and makes bass sound clear and punchy.
acoustic characteristics:
diffusion: 600-8000 Hz
absorption: 100-500 Hz
material: wood, oil & wax
dimension:
600x600x64 mm
weight: 2,5 kg
options:
Honey
Tabaco
The beauty of natural wood, coated with oil and wax, makes any room richer and more pleasant for long-term creative work.
The panel fits well into any professional studio, home theater or living room interior. Precise machining and handcrafting ensure the best quality of the product, and the uniqueness of the wood texture makes each product an unique object of decoration.
3D Diffusers 80
Diffuser / Bass trap absorber
acoustic characteristics:
diffusion: 600-8000 Hz
absorption: 100-500 Hz
material: wood, oil & wax
dimension: 600x600x80 mm
weight: 2,5 kg
options:
Honey
Tabaco
This diffuser has different geometric shapes and patterns than the 3D Diffuser 50.
Sharper angles and internal cavity volumes give slightly different characteristics of diffusion and absorption.
Like 3D Diffuser 50, it is successful in correcting the acoustics of small and medium-sized rooms (the characteristic resonances of such volumes lie within the sensitive range of absorption of this panel). It is mainly used on the ceiling, but can also be installed on walls.
The beauty of natural wood, coated with oil and wax, makes any room richer and more pleasant for long-term creative work.
The panel fits well into any interior of the studio, home theater or living room. Precise machining and manual work ensure the best quality of the product, and the impregnability of the wood texture makes each product a unique object of decoration.
The lightweight makes installation fast and simple. Common usage in the ceiling but also could be used on walls.

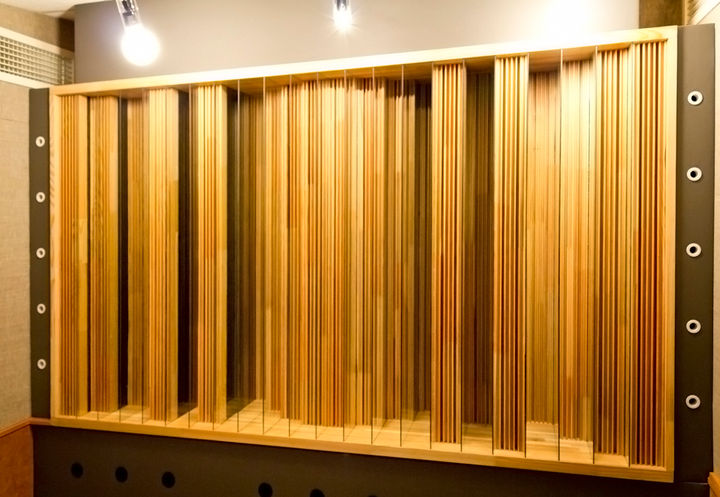

Diffractal 21-GL
State of Art sound-diffusion device. Diffractal-21GL
A unique diffusion device. Recommended for mixing / mastering studios, music listening rooms.
Diffracta has the widest frequency range of diffusion ever known ( 250-20kHz )
The Diffractal-21GL is the largest diffuser we produce.
This is the QRD (square residue diffuser), where its main elements are also high-frequency Diffuser QRD. This system provides the widest frequency range of true diffusion than any other known diffuser. It combines two QRD diffusers with different frequency ranges into one complex and efficient system.
The Diffractal-21GL is usually mounted on the rear wall of a room. This makes your space much larger acoustically and creates a deep spatial impression even in a small room. Normally, we optimize the diffractal size for each project individually to achieve the highest possible efficiency factor at the maximum possible depth of the diffuser.
A Diffractal made of solid wood, coated with oil and wax. In combination with glass, it creates a stunning optical effect.
3D Diffusers 80
Diffractal 7
It's a 7th order Diffractal module. It is used for construction of modulated sequences (from 3 to 7. modules), thus providing the widest possible frequency range of diffusion down to 125 Hz (while requires a construction of 70 cm depth)
acoustic characteristics:
diffusion: 315-18000 Hz
absorption: 80-250 Hz
Material: hardwood, oil and wax
plywood (glass) *
size: 1200x700x (200-350) ** mm
Weight: 35-54 *** kg
A Diffractal provides the widest true-diffusion frequency range than any other known diffuser. It combines two QRD diffusers with different frequency ranges into one complex and efficient system.
The Diffractal-7 is often mounted on the rear wall as a combination of 3-7 elements. The dimensions and structure of the modules have different depth and structures, when they combined in a modulated sequence system provides a better uniform diffuse sound field.
Broand band absorber
It is the most effective in reducing of reverberation time. Thanks to its rigid framed construction, it can be easily mounted on a wall or suspended under the ceiling.
acoustic characteristics:
absorption: 150-20 kHz
material: textile, filterfabric, soundinsulation
dimension: 1050x550x(50-150) mm
weight:2-20 kg
custom size, geometry (rectangular, trapeziodal )
color options:
The use of these panels is the most common solution in the initial design phase of room acoustics, but cannot completely eliminate the unevenness of the sound field. In rooms of up to 100 square meters without diffuser panels, this is practically impossible.
Bass trap
This type of absorber is called a bass trap because it only works as an absorber in a defined, narrow, low frequency range of 30 to 150 Hz.
The device must be optimally tuned for each room and placed correctly in it.
We manufacture bass traps individually for each project, and only after a detailed simulation of low-frequency resonances or based on the results of acoustic tests.
acoustic characteristics:
absorption: 35-160 Hz
material: textile, filterfabric, soundinsulation
dimension: custom
weight:7-25 kg
custom size , geometry (rectangular,trapeziod,
triangular)
color options:
The total weight of the trap can reach 35 kg, as its body is made of rigid heavy, usually wooden, elements similar in characteristics to the acoustic systems.
There are certain types of structures that we use as an alternative if transporting such traps is not cost-effective, and when planning and building a room from scratch, we integrate the traps directly into the wall and ceiling surface.
Acoustic room kit
X 12
X 8
Sample acoustic treatment Room kit for 20 sq.m room.
Acoustic kit - a pre-calculated set of acoustic panels for the rooms (16-40 square meters. M).
The number of panels in the set and the color vary from 8 to 50
acoustic characteristics:
pre-calculated set optimized
for 10-40 sq.m
material: wood, textile, filter-fabric, sound insulation
weight:15-250 kg
packed with custom completion, color, size, geometry, equipped with fixing hardware
wood color options:
Honey
Tabaco
textile color options:
Fast installation, removable panels which you can take with you from one to another location if you need to move.
Can be complete with Diffractal.
Ask for a quote via email, describe your room as the purpose of use, size, a material of wall ceiling floor.
